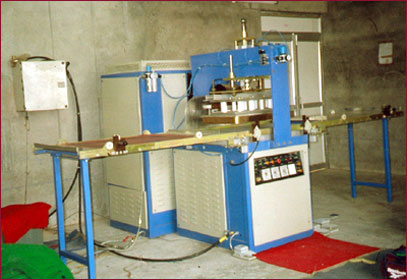

PVC Welding Machine with Shuttle Tray
|
2 kw Table Model |
|
FEATURES :
1) Sound Mechanical Toggle Press of Sturdy Cast Aluminum.
2) Bigger Work Plate and work Table to accommodate big dimensional jobs.
3) Universally available Oscillator Tubes.
4) Extra-precise L & T make synchronous motorised timer.
5) Electronic overload protecting circuit |
| |
SALIENT FEATURES :
1 Over rated components of the machine ensure long trouble Free Service.
2 Designed to work almost round the Clock.
3 Automatic Over-Load Protection Device incorporated.
4. Ensures highest rate of production and hence Profitability. |
| |
| APPLICATIONS : |
STATIONERY : Full Size PVC and Rexine Files, Computer Files, Price Folders.
RAINWEAR : Bigger Jobs of Raincoats, Medical Aprons, Safety Suits.
FURNITURE : Auto Upholstery, Scooter Covers, Sun Visers, Jeep and Car Hoods, Side Panels and Seats.
BAGS : Shopping Bags, Moulded Luggage Inner Partition, College Books Folders (Textile Re-inforced)
TOYS : Swimming Pools, Life Jackets, Tents and Tarpoline Material.
APPLIQUE : Golden and Silver Embossing. |
| |
| SPECIFICATION |
| ELECTRICAL |
|
| POWER INPUT |
230 VAC, 50Hz, 20 A |
| POWER OUTPUT |
2 KW Approx. |
| FREQUENCY |
30 MHz NOMINAL |
| OSCILLATING TUBES |
2 Nos. 833 A / 833C |
| WELDING AREA |
50 Sq.Cms.(8 Sq.inch) |
| RECTIFIER |
SILICON BRIDGE. |
| |
|
| MECHANICAL |
|
| WEIGHT |
250 Kg.Approx. |
| STROKE |
5 Cms.(2 inches) |
| PLATE |
72 Cms X 40 Cms (29" X 16") |
| SIZE |
140 Cms X 75 Cms (56" X 30") |
| PRESSURE |
MANUAL TOGGLE PRESS |
| TIMER |
SYNCHRONOUS MOTOR 0-12 Seconds. |
|
|
|
|
15 K.Watts PVC Welding Machine |
15 K.Watts PVC Welding Machine with Shuttle Tray |
|
|
| |
|
Due to constant process of product improvement we reserve the right of modifying the design without intimation |
| |
|
|
|
| |
